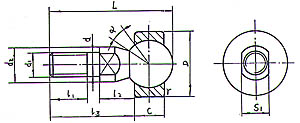

Ball Joint Rod Ends


　


　

Bearings number
Dimensions mm
　
Static load ratings kN
α＜
「
Weight
「kg
d
d1
d2
l1
l2
l3
max
L
max
S1
C
D
rs
min
SOD5
5
M5
9
8
8
19
27.5
7
6
16
0.3
2.0
25
0.014
SOD6
6
M6
10
11
8.8
23.8
33.5
8
6.75
18
0.3
3.2
25
0.021
SOD8
8
M8
12
12
11.6
28.6
41
10
9
22
0.3
5.7
25
0.042
SOD10
10
M10*1.25
14
15
14.2
34.2
49
11
10.5
26
0.3
9.2
25
0.067
SOD12
12
M12*1.25
17
17
15.1
38.1
55.1
15
12
30
0.5
14
25
0.108
SOD14
14
M14*1.5
19
22
16.8
51.3
70.7
17
13.5
34
0.5
19
20
0.167
SOD16
16
M16*1.5
22
23
18
54.5
76.3
19
15
38
0.5
26
20
0.238


　


　

Bearings number
Dimensions mm
Load ratings KN
α＜
「
Weight
「kg
d
d1
d2
min
d3
max
l1
min
l2
S1
L
max
L1
L2
max
L3
min
D1
max
D2
max
D3
max
S2
Static load ratings kN
SQZ5-RS
5
M5
9
20
8
11
7
46
24
4
12
9
11
17
9
2.8
15
0.025
SQZ6-RS
6
M6
10
20
11
12.2
8
55.2
28
5
15
10
13
20
11
3.7
15
0.041
SQZ8-RS
8
M8
12
24
12
16
10
65
32
5
16
12.5
16
24
14
5.8
15
0.075
SQZ10-RS
10
M10*1.25
14
30
15
19.5
11
74.5
35
6.5
18
15
19
28
17
8.4
15
0.12
SQZ12-RS
12
M12*1.25
17
32
17
21
15
84
40
6.5
20
17.5
22
32
19
11
15
0.18
SQZ14-RS
14
M14*1.5
19
38
22
23.5
17
103
45
8
25
20
25
36
22
15
11
0.27
SQZ16-RS
16
M16*1.5
22
44
23
25.5
19
112
50
8
27
22
27
40
22
15
11
0.36
SQZ18-RS
18
M18*1.5
23
45
25
31
20
130.5
58
10
32
25
31
45
27
19
11
0.54
SQZ20-RS
20
M20*1.5
27
50
25
29
24
133
63
10
38
27.5
34
45
30
19
7.5
0.57
SQZ22-RS
22
M22*1.5
27
52
26
33
24
145
70
12
43
30
37
50
32
23
7.5
0.76


　


　

Bearings number
Dimensions mm
Load ratings KN
α＜
「
Weight
「kg
d
d1
d2
min
d3
max
l
max
l1
min
l2
l3
max
S1
L
max
L1
L2
max
L3
min
D1
max
D2
max
D3
max
S2
Static load ratings kN
SQ5-RS
5
M5
9
20
29
8
10
21
7
35
27
4
14
9
11
17
9
2.2
25
0.026
SQ6-RS
6
M6
10
20
35.5
11
11
26
8
40
30
5
14
10
13
20
11
3.5
25
0.039
SQ8-RS
8
M8
12
24
42.5
12
14
31
10
48
36
5
17
12.5
16
24
14
6.6
25
0.068
SQ10-RS
10
M10*1.25
14
30
50.5
15
17
37
11
57
43
6.5
21
15
19
28
17
10
25
0.112
SQ12-RS
12
M12*1.25
17
32
57.5
17
19
42
15
66
50
6.5
25
17.5
22
32
19
16
25
0.164
SQ14-RS
14
M14*1.5
19
38
73.5
22
21.5
56
17
75
57
8
26
20
25
36
22
19
25
0.254
SQ16-RS
16
M16*1.5
22
44
79.5
23
23.5
60
19
84
64
8
32
22
27
40
22
26
20
0.336
SQ18-RS
18
M18*1.5
23
45
90
25
26.5
68
20
93
71
10
34
25
31
45
27
33
20
0.464
SQ20-RS
20
M20*1.5
27
50
90
25
27
68
24
99
77
10
35
27.5
34
45
30
45
20
0.538
SQ22-RS
22
M22*1.5
27
52
95
26
28
70
24
109
84
12
41
30
37
50
32
48
16
0.713
