1.Thrust ball bearing
|
The series of dimension |
The range of type |
|
Series 1 |
51105 - 51110 |
|
Series 2 |
51205 - 51210 |
|
TECHNICAL DETAILS OF
THRUST BALL BEARINGS

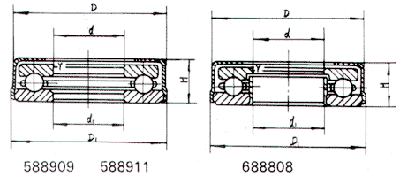

2.Thrust ball bearings with retaining shield
The bearings of this
have:588909,588911,688808
|
Bearing number
|
Dimensions (mm)
|
Weight (kg)
|
|
d
|
d1
|
D
|
D1
|
H
|
|
588909
|
45
|
45.2
|
70
|
73
|
17.2
|
0.212
|
|
588911
|
52.388
|
52.8
|
82
|
84.5
|
20.7
|
0.308
|
|
688808
|
40
|
40.3
|
65
|
67
|
14.25
|
0.165
|
|
